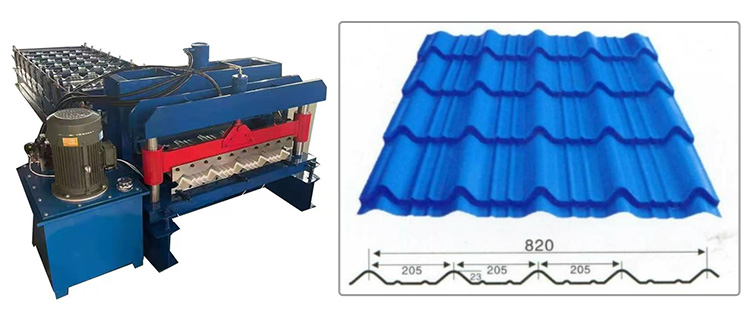

SINO-820 single deck roll forming machine

  • Port:

    Qingdao, China

  • Transport Package:

    Customized

  • Payment Terms:

    L/C, T/T

  • Tile Type:

    Steel coil

  • Certification:

    CE, ISO

  • Condition:

    New

  • Customized:

    Customized

  • Usage:

    Roof, Wall, Floor

  • Transmission Method:

    Hydraulic Pressure

Contact Now






Coil material

Coil material

PPGI

Coil width

1000MM

Coil thickness

0.3-0.7mm



Bearing weight

Max 5.0Tons

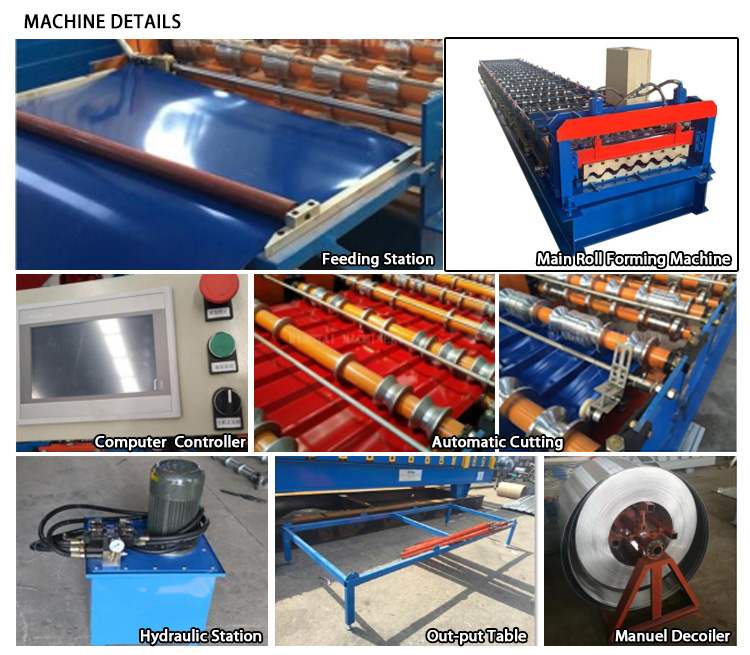

Decoiler

Coil Inner diameter

450-508mm

Coil Out diameter

1500mm



















Forming machine

Machine size

About 5.6*1.5*1.4M

Working speed

3-5m/min

Voltage

380V,3Phase,60HZ

Forming steps

11Rows

Shaft diameter

Φ70MM Solid Shaft

Shaft material

High grade 45# steel

Roller material

Bearing Steel

Main frame

300H

Mid-plate

14mm

Chain

1 inch

Machine Motor

3KW

Precision

±1MM





Cutting device

Cutting

Hydraulic

Blade material

Gr12, Quenching









Control system

PLC

DELTA

Screen

Text/Touch

Language

Chinese/English
