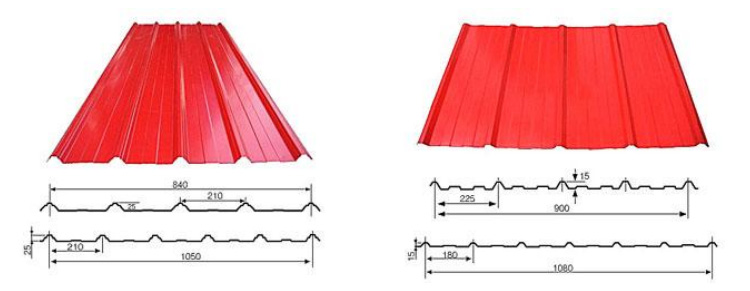

SINO-840.900 single deck roll forming machine

  • Port:

    Qingdao, China

  • Transport Package:

    Customized

  • Payment Terms:

    L/C, T/T

  • Tile Type:

    Steel coil

  • Certification:

    CE, ISO

  • Condition:

    New

  • Customized:

    Customized

  • Usage:

    Roof, Wall, Floor

  • Transmission Method:

    Hydraulic Pressure

Contact Now

Coil material

Coil material

Color coil





Galvanized coil



Coil width

48 inch



Coil thickness

0.5mm

Decoiler

Bearing weight

Max 5.0 tons



Coil Inner diameter

450-550mm



Coil Out diameter

1500mm

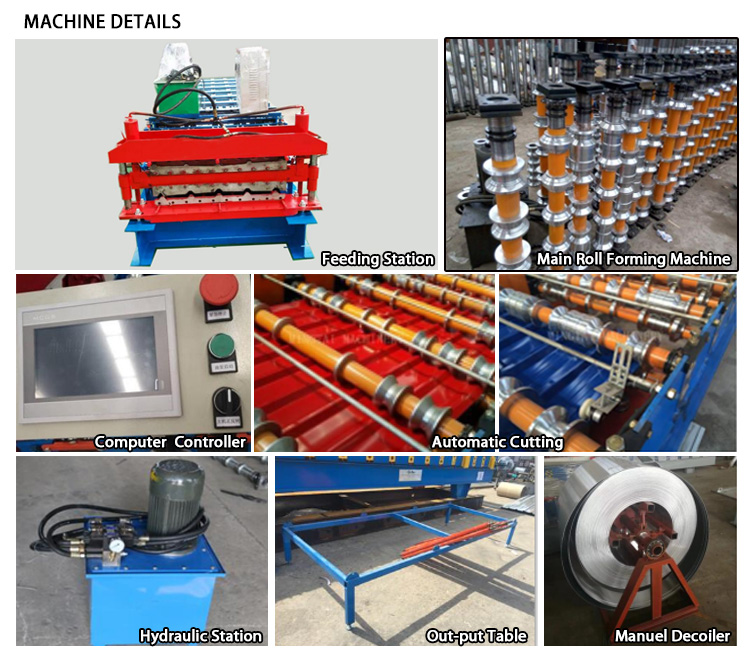

Forming machine

Machine size

5800*1350*1200MM



Machine weight

4.0-5.0Tons



Working speed

12-15m/min



Voltage

380V, 3 phases, 50-60 HZ



Forming steps

10/11Rows



Shaft diameter

φ70



Shaft material

High grade 45# steel



Roller material

45 # forged steel



Main frame

300H



Mid-plate

16mm



Chain

1 inch



Machine Motor

4.0KW



Precision

±1MM

Cutting device

Cutting

Hydraulics



Blade material

Gr12, temple



Pump motor

4.0KW

Control system

PLC

DELTA



Screen

Touch



Language

Chinese / English / Spanish
