Port:
Qingdao, China
Transport Package:
Customized
Payment Terms:
L/C, T/T
Tile Type:
Steel coil
Certification:
CE, ISO
Condition:
New
Customized:
Customized
Usage:
Roof, Wall, Floor
Transmission Method:
Hydraulic Pressure
|

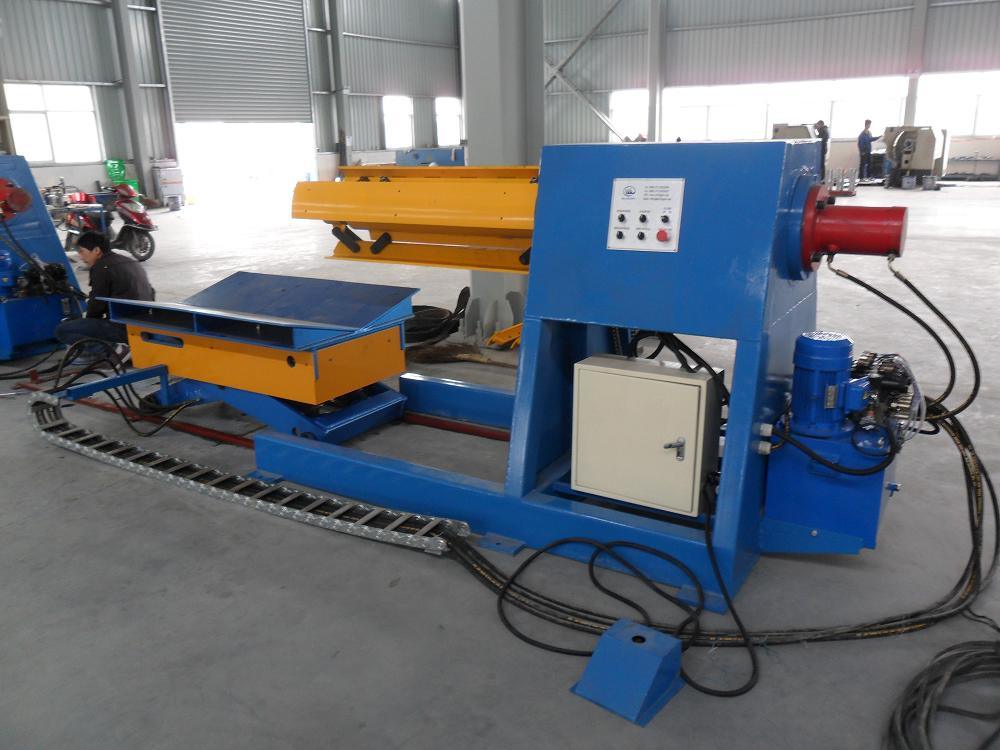

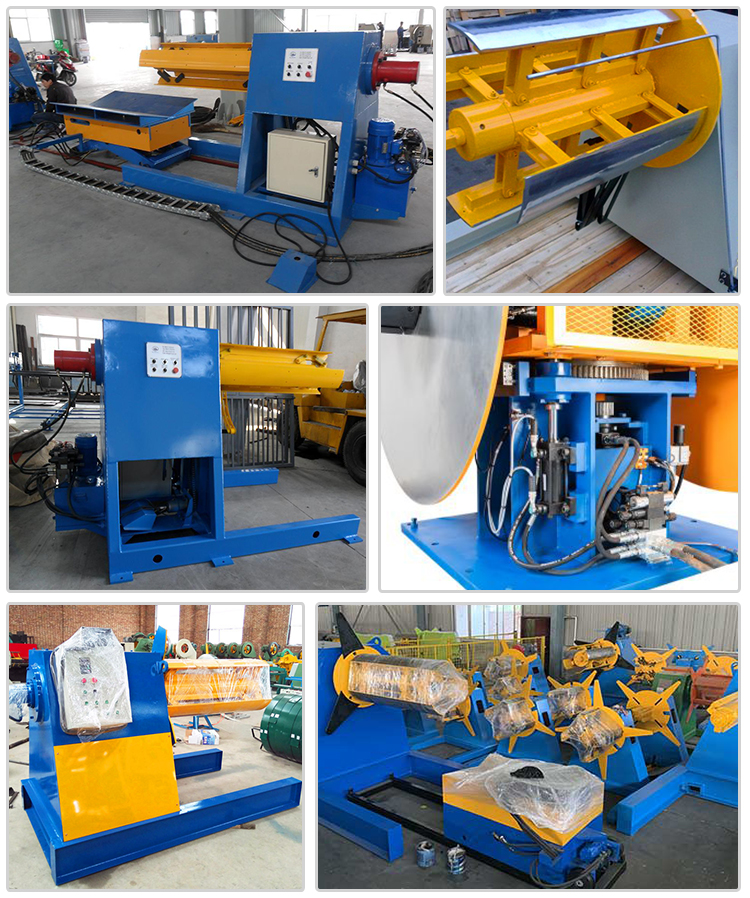

Main machine |
Dimension of machine |
2.5m(L)*1.7m(W)*1.8m(H) |
|
|
Weight of machine |
2.3Ton |
|
|
Main motor power |
5.5KW |
|
|
Hydraulic Pump Stations |
3KW |
|
|
Structure of decoiler |
section steel welding |
|
|
Main shaft |
45# steel |
|
|
Bearing weight |
6Ton |
|
|
Range of expand |
48mm-570mm |
|
|
Bearing width of coil |
1000MM-1250MM |
|
|
Working speed |
0-16m/min |
|
|
Automatic Control System |
upright control cabinet,adopt Delta PLC,transducer,Chint,DELIXI and other control elements |
|
|
Control Panel control length,and manual adjust working speed |
|
|
Feeding car |
Lifting mode |
Hydraulic drive |
|
|
Height adjustable range |
0-400mm |
|
|
Bearing weight |
5Ton |
|
|
Power of car |
1.5KW |
|
|
Frame of car |
section steel welding |
|
|
Dimension |
2.5M(L)*1M(W)*0.7M(H) |
|
|
Control Panel System |
matching the deociler |
