Shandong Sino Steel Co., Ltd.
English
Port:
Qingdao, China
Transport Package:
Customized
Payment Terms:
L/C, T/T
Tile Type:
Steel coil
Certification:
CE, ISO
Condition:
New
Customized:
Customized
Usage:
Roof, Wall, Floor
Transmission Method:
Hydraulic Pressure
|
Coil material |
Coil material |
Color coil |
|
|
|
Galvanized coil |
|
|
Coil width |
48 inch |
|
|
Coil thickness |
0.5mm |
|
Decoiler |
Bearing weight |
Max 5.0 tons |
|
|
Coil Inner diameter |
450-550mm |
|
|
Coil Out diameter |
1500mm |
|

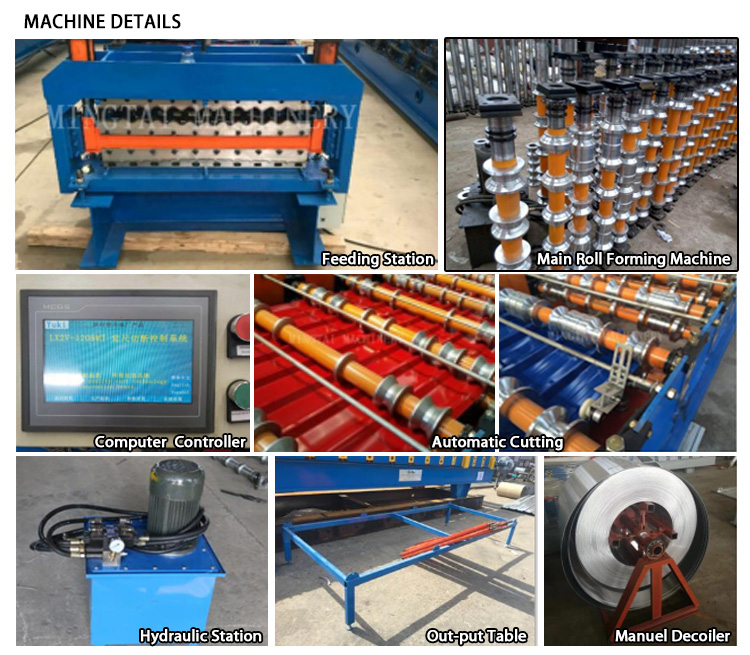

Forming machine |
Machine size |
6200*1350*1200MM |
|
|
Machine weight |
4.0-5.0Tons |
|
|
Working speed |
12-15m/min |
|
|
Voltage |
220V, 3 fases, 50-60 HZ |
|
|
Forming steps |
14 Rows/15Rows |
|
|
Shaft diameter |
φ70 |
|
|
Shaft material |
High grade 45# steel |
|
|
Roller material |
45 # forged steel |
|
|
Main frame |
300H |
|
|
Mid-plate |
16mm |
|
|
Chain |
1 inch |
|
|
Machine Motor |
4.0KW |
|
|
Precision |
±1MM |
|
Cutting device |
Corte |
Hydraulics |
|
|
Material de la cuchilla |
Gr12, temple |
|
|
Motor de bomba |
4.0KW |
|
Control system |
PLC |
DELTA |
|
|
Screen |
Touch |
|
|
Language |
Chinese / English / Spanish |
